• 3D Printing

Fused Deposition Modeling (FDM)

FDM technology can go about building quick prototypes with strength and speed, at a very economical price in a range of thermoplastic materials, which makes it a very attractive option.

A wide range of FDM printers are available in the market today , The raw material is inexpensive, durable and maintains dimensional integrity , There is a wide choice of raw material , They are affordable , Low turnaround time.


  • Overview
  • Applications
  • Materials
  • Specifications
  • Post Processing

Overview

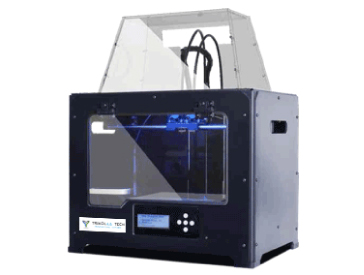

3D printing utilizing the extrusion of thermoplastic material is easily the most common and recognizable 3DP process. The most popular name for the process is Fused Deposition Modelling (FDM).

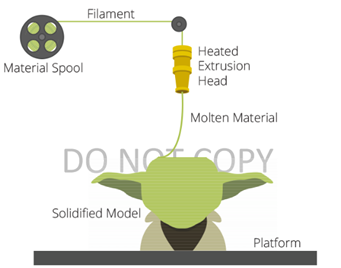

The process works by melting plastic filament that is deposited, via a heated extruder, a layer at a time, onto a build platform according to the 3D data supplied to the printer. Each layer hardens as it is deposited and bonds to the previous layer. The FDM/FFF processes require support structures for any applications with overhanging geometries.

The great advantage of FDM is the durable materials it uses, the stability of their mechanical properties over time, and the quality of the parts. The production-grade thermoplastic materials used in FDM are suitable for detailed functional prototypes, durable manufacturing tools and low-volume manufacturing parts.

Support structures, or lack thereof, have generally been a limitation of the entry level FFF 3D printers. However, as the systems have evolved and improved to incorporate dual extrusion heads, it has become less of an issue. Occasionally, the process can be slow for some part geometries and layer-to-layer adhesion can be a problem, resulting in parts that are not watertight.

Applications

  • Prototypes for form, fit and function testing
  • Prototypes directly constructed in production materials like ABS, Nylon
  • Low-volume production of complex end-use parts
  • Patterns for Sand casting & molds with lesser detailing

Materials

PLA

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
62.63 65.02 4.28 190 – 220

ABS

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
40.96 45.44 22.11 220 – 260

PETG

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
49 68 7.5 230 – 250

Nylon

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
50 – 55 85 – 90 354 220 – 260

Poly Carbonate

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
62.7 100.4 3.41 260 – 280

Wood

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
23.2 52.9 2.06 NA

Flexible

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
13.85 NA NA 190 – 220

HIPS

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(MPa) Melting Temperature°C
26.5 32.94 10.89 220 – 260

Specifications

Minimum Wall thickness : 1.2 mm

Minimum details size : 2 mm (for text/ hole diameters etc)

Layer thickness : 0.1 mm – 0.3 mm

Max dimensions : 650 x 600 x 600 mm. Large parts can be created with assembling individual parts by interlocking designs or glueing together.

Standard Accuracy : ± 0.3% (with lower limit on ± 0.3 mm).

Lead Time : Minimum 2 working days for despatch

Surface finish : visible layers with texture.

Post Processing

Basic : Support Removal, Sanding, Smoothing

Add on : Primer, Coating / Painting

Stereolithography (SLA)

One of the most widely-used rapid prototyping technologies for plastic models that require great looking models with impeccable surface quality.

Stereolithography (SLA) 3D printing has become vastly popular for its ability to produce high-accuracy, isotropic, and watertight prototypes and parts in a range of advanced materials with fine features and smooth surface finish.

  • Overview
  • Applications
  • Materials
  • Specifications
  • Post Processing

Overview

Stereolithography (SL) is widely recognized as the first 3D printing process. It is an industrial 3D printing process used to create complex models, concepts and prototypes with excellent surface finish and accuracy. It is used for applications like jewelry, dentistry, casting and molds, as it supports high feature resolutions, and detailing.

Process

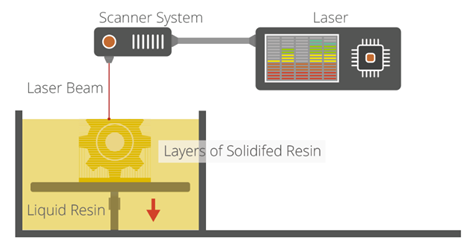

SLA is a laser-based process that works with photopolymer resins that react with the laser and cure to form a solid in a very precise way. A laser beam is directed in the X-Y axes across the surface of the resin according to the 3D data supplied to the machine (the .stl file), whereby the resin hardens precisely where the laser hits the surface. Once the layer is completed, the platform within the vat drops down by a fraction (in the Z axis) and the subsequent layer is traced out by the laser. This continues until the entire object is completed and the platform can be raised out of the vat for removal.

Because of the nature of the SL process, it requires support structures for some parts, specifically those with overhangs or undercuts. These structures need to be manually removed. In terms of other post processing steps, many objects 3D printed using SL need to be cleaned and cured. Curing involves subjecting the part to intense light in an oven-like machine to fully harden the resin.

Applications

  • Master copies for vacuum casting and other low volume prototyping techniques
  • Patterns for investment casting
  • Functional testing prototypes
  • Low volume/ limited edition products especially for complex geometries
  • Visual prototypes for photo shoots and market testing
  • Dental/ jewelry/ art and other sectors which require high detailing and finish

Materials

Accura 60

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(J/m) Melting Temperature°C
58 -68 87 – 101 15 – 25 53 – 55

Visijet Clear

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(J/m) Melting Temperature°C
52 43 86 50

Accura Xtreme

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(J/m) Melting Temperature°C
33 – 44 52 – 71 35 – 52 62

Visisjet SL Flex

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(J/m) Melting Temperature°C
38 57 22 53

Accura Cast pro

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength(J/m) Melting Temperature°C
52 – 53 82 – 84 43 – 49.5 51

Specifications

Minimum Wall thickness : 0.8 mm

Minimum details size : 2 mm (for text/ hole diameters etc)

Layer thickness : 0.05 mm – 0.1 mm

Max dimensions : 650 x 650 x 450 mm

Standard Accuracy : ± 0.2% (with lower limit on ± 0.2 mm). Dimensions tend to change with exposure to direct sunlight or another UV source

Lead Time : Minimum 2 working days for despatch

Surface finish : Smooth, with tiny visible layers.

Post Processing

Basic : Support Removal, Sanding, Smoothing

Add on : Primer, Coating / Painting

Selective Laser Sintering (SLS)

One of the most widely used prototyping technique for functional parts and components due to its ability to create complex geometries very easily. Accurate prototypes and functional production parts with high durability, using multiple nylon based powders

Selective Laser Sintering (SLS) is an Additive Manufacturing method that uses a powder bed fusion process to build 3D parts. This additive manufacturing technology can be used both for rapid prototyping and production.

  • Overview
  • Applications
  • Materials
  • Specifications
  • Post Processing

Overview

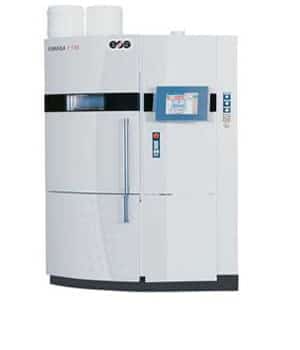

Laser sintering refers to a laser based 3D printing process that works with powdered materials. IT works with different types of nylon materials with varying levels of stiffness and ductility.

Process

The laser is traced across a powder bed of tightly compacted powdered material, according to the 3D data fed to the machine, in the X-Y axes. As the laser interacts with the surface of the powdered material it sinters, or fuses, the particles to each other forming a solid. As each layer is completed the powder bed drops incrementally and a roller smoothens the powder over the surface of the bed prior to the next pass of the laser for the subsequent layer to be formed and fused with the previous layer. The build chamber is completely sealed as it is necessary to maintain a precise temperature during the process specific to the melting point of the powdered material of choice. Once finished, the entire powder bed is removed from the machine and the excess powder can be removed to leave the ‘printed’ parts.

One of the key advantages of this process is that the powder bed serves as an in-process support structure for overhangs and undercuts, and therefore complex shapes that could not be manufactured in any other way are possible with this process. With no need for support structures, this technology is suitable for interlocking parts, moving parts, living hinges and other highly complex designs and gives infinite design freedom.However, on the downside, because of the high temperatures required for laser sintering, cooling times can be considerable.

Applications

  • Prototypes with good mechanical properties
  • Complex geometries and large build volume parts
  • Small parts in limited volumes as end use parts
  • Functional fitment analysis
  • Light weight designs
  • Spare parts and complicated art forms

Materials

Duraform Nylon PA

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength Hardness
43 48 32 80 D

Nylon GF 30%

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength Hardness
31 NA 32 NA

Nylon Ex black

Tensile Strength(MPa) Flexural Strength(MPa) Impact Strength Hardness
37 15-17 32 74 D

Specifications

Minimum Wall thickness : 0.8 – 1 mm

Minimum details size : 2.5 mm (for text/ hole diameters etc)

Layer thickness : 0.1 mm

Max dimensions : 650 x 330 x 560 mm

Standard Accuracy : ± 0.3% (with lower limit on ± 0.3 mm).

Lead Time : Minimum 3 working days for despatch

Surface finish : Sharp grainy matt finish

Post Processing

Basic : Powder removal, Blasting, Smoothing

Add on : Primer, Coating / Painting

Direct Metal Laser Sintering (DMLS)

Direct metal laser sintering (DMLS) is an industrial 3D printing process that builds fully functional metal prototypes in a range of metals like steel, aluminimu, titanium etc. It allows for the direct manufacturing of complex end-use parts and facilitates tooling for conventional manufacturing technologies, reducing costs and lead times.

Direct metal laser sintering is one of the most fascinating 3D printing techniques, as it allows you to print your own designs in metals such as Aluminum or Titanium. Today we will take a more detailed look at this technology and see how you can access it via our online service.

  • Overview
  • Applications
  • Materials
  • Specifications
  • Post Processing

Overview

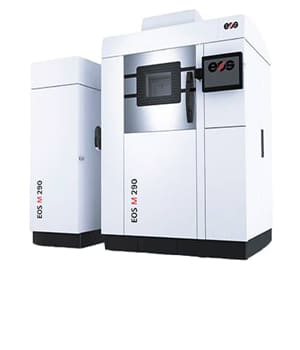

Metal 3D Printing is a laser-based technology that uses powdered metals. Similar to Laser Sintering, a high-powered laser selectively binds together particles on the powder bed while the machine distributes even layers of metallic powder.

Process

Support structures are automatically generated and built simultaneously in the same material, and are later manually removed. An initial brushing is manually administered to parts to remove a majority of loose powder, followed by the appropriate heat-treat cycle while still fixtured in the support systems to relieve any stresses. Parts are removed from the platform and support structures are removed from the parts, then finished with any needed bead blasting and deburring. Final DMLS parts are near 100 percent dense.

This technology combines the design flexibility of 3D Printing with the mechanical properties of metal. From tooling inserts with cooling channels to lightweight structures for aerospace, any application that involves complex metal parts potentially benefits from Metal 3D Printing.

Applications

  • Fully functional prototypes
  • Production tools and tooling such as molds and inserts
  • Spare parts and end use parts
  • Heat exchangers and heatsinks
  • Light weight structures

Materials

EOS Maraging Steel MS1

Tensile Strength(MPa) Hardness Thermal Conductivity(W/m-celsius)
XY:1100 Z:1100 33 – 37 HRC 15

EOS Stainless Steel 316L

Tensile Strength(MPa) Hardness Thermal Conductivity(W/m-celsius)
XY:640Z:590 89 HRB NA

EOS Cobalt Chrome MP1

Tensile Strength(MPa) Hardness Thermal Conductivity(W/m-celsius)
XY:1350Z:1200 35 – 45 HRC 13 – 33

EOS Aluminum AlSi10Mg

Tensile Strength(MPa) Hardness Thermal Conductivity(W/m-celsius)
XY:460Z:460 119 HBW 105

EOS Titanium Ti64

Tensile Strength(MPa) Hardness Thermal Conductivity(W/m-celsius)
XY:1290Z:1240 320 HV5 NA

EOS Nickel Alloy IN718

Tensile Strength(MPa) Hardness Thermal Conductivity(W/m-celsius)
XY:1060Z:980 30 HRC NA

Specifications

Minimum Wall thickness : 0.8 – 1 mm

Minimum details size : 2 mm (for text/ hole diameters etc)

Layer thickness : 0.05 – 1 mm

Max dimensions : 250 x 250 x 325 mm

Standard Accuracy : ± 0.2% (with lower limit on ± 0.2 mm).

Lead Time : Minimum 10-14 working days for despatch

Surface finish : Rough surface, which can undergo finishing stages as per requirement

Post Processing

Basic : Powder removal, Blasting, Smoothing

Add on : Tapping, Heat Treatment
